Equipment Overview:
The equipment is used for transformer automatic production. Multiple windings are completed on one machine at one time, which perfectly realizes the automatic operation of transformer bushing, winding and tape wrapping
Equipment features:
1Through the casing, hang the angle to manage the line, wrap the tape
25 kinds of wires + 5 kinds of casings can be freely switched
3, manual / automatic feeding, automatic feeding, automatic feeding, one person can watch multiple machines.
Field of application:
It is suitable for transformer automatic production
Equipment parameters:
|
name |
parameter
|
name |
parameter |
|
name |
Transformer bushing winding machine |
Overall dimensions |
Length 1.5m * width 0.9m * height 1.5m |
|
yield |
According to customer winding
|
Yield |
More than 99%
|
|
Dynamic rate |
More than 85% |
Total power |
≤1KW |
|
Power Supply |
AC220V single phase 50 / 60Hz |
Air source |
Above 0.5MPa |
|
wire rod |
Enameled wire, three-layer insulated wire |
Number of winding layers |
Configurable |
|
tape width |
customized |
Casing model |
The outer diameter can be customized and the length can be set |

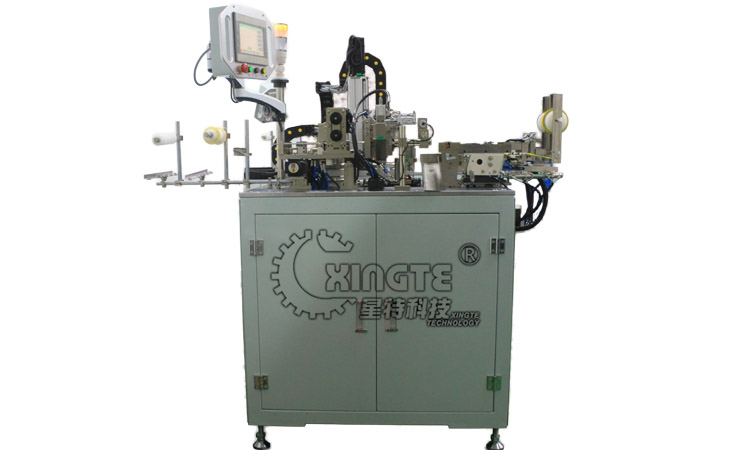

Equipment appearance:
Display of finished products produced by equipment:
